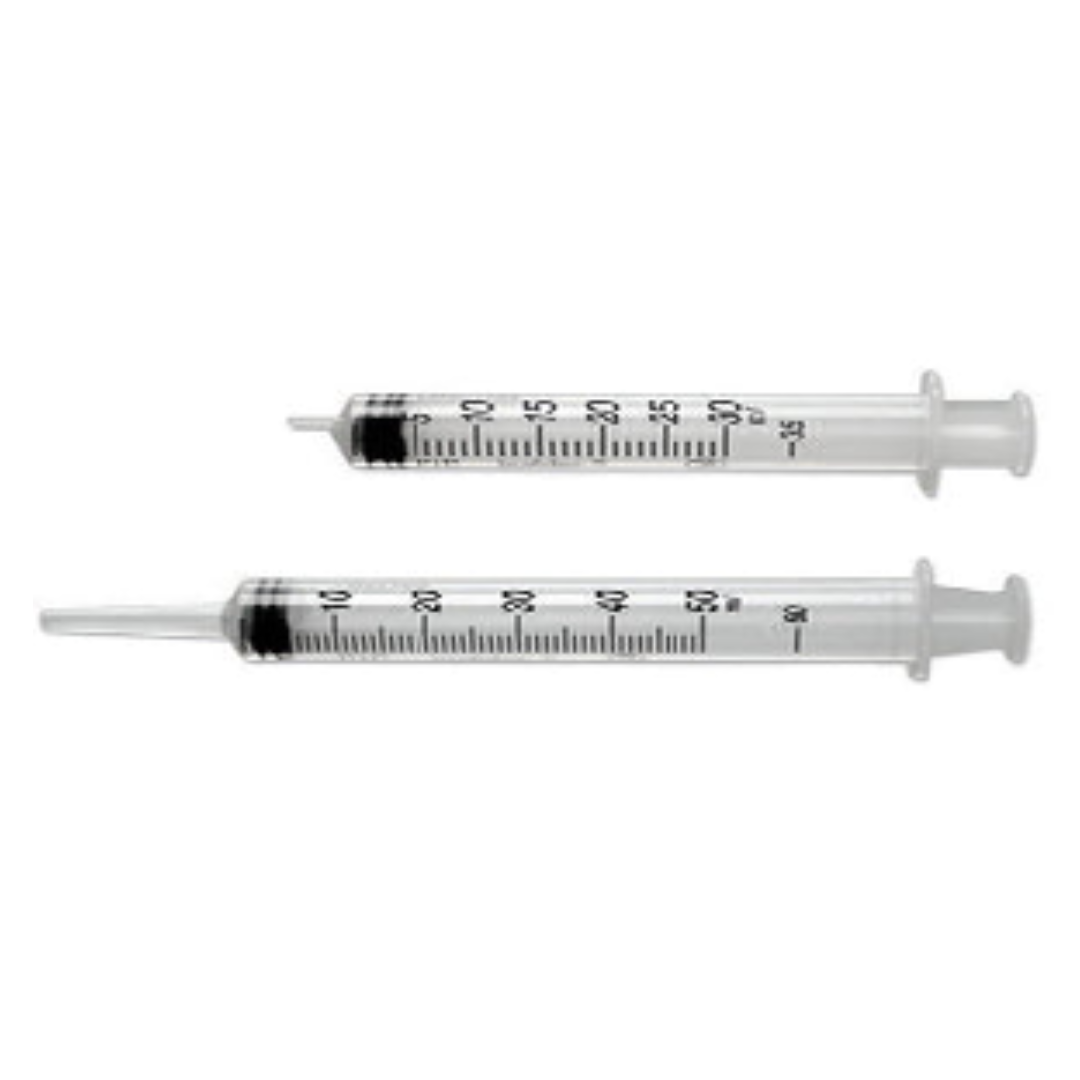

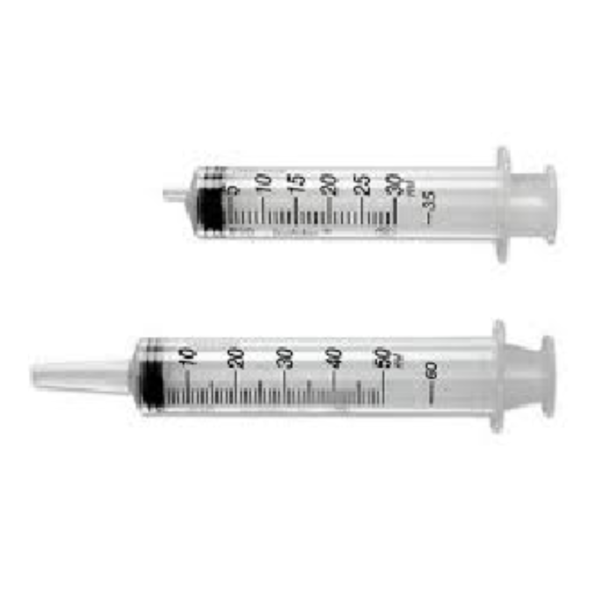

DS1073 – Sterile single use syringes with out needle & with needle mounted on top
Description
Specifications
BARRELS & PLUNGERS Made of non-toxic, medical-grade polypropylene compatible with the medication for short term contact drug delivery application. The nozzle of the barrel is of two types – luer mount and luer lock. Both have a 6% luer taper as per 1SO:594
GASKETS Chemically inert and compatible with the medications for short term contact drug delivery application.
LUER LOCK Luer Lock nozzle present in UNOLOK syringes ensures a secure needle fitment.
PACKING The needles are packed in tamper-evident blister packs having easy peelability, medical-grade paper which ensure reliability of seal and product sterility.
PRECAUTIONS Before use, check the integrity of the sealing of the pack. Store in clean dry & insect free environment. Avoid exposure to excessive heat. Avoid exposure to acidic/corrosive fumes, to avoid corrosion of rust. Dispose in sharps container. Avoid piercing the needle through the wall of hard plastic container, it may result in needle blockage.
| Code | Capacity | Type of Nozzle | Standard Needle Dimensions |
|---|---|---|---|
| DS1073-1 | 1ML.*(T.B) | Luer mount/luer lock with central nozzle | 26G x 1/2″ *0.45 × 13 |
| DS1073-2 | 2ML.** | Luer mount/luer lock with central nozzle | 24GX1″, 23GX1″ 23GX1 1/2″ 22GX1″ *055X25 0.60X25 0.60X38 0.70X25 25GX1 1/4″, 22GX1″ 21GX1″ 21GX1 1/2″ *0.70X32 0.70X38 0.80X25 0.80X38 |
| DS1073-3 | 3ML. | Luer mount/luer lock with central nozzle | Specifications same as 2 ml |
| DS1073-4 | 5M.** | Luer mount/luer lock with central nozzle | Specifications same as 2 ml |
| DS1073-5 | 10ML.** | Luer mount with eccentric nozzle luer lock with central nozzle | 226×11/4″, 22G11/2″, 21GX11/2″, 20GX11/2″ *0.70×32 0.70×38 0.80×38 0.90×38 Same as above |
| DS1073-6 | 20ML. | Luer mount with eccentric nozzle luer lock with central nozzle | Specifications same as 10 ml |
| DS1073-7 | 50ML. | Luer mount with eccentric nozzle luer lock with central nozzle | Without needle |
