Description

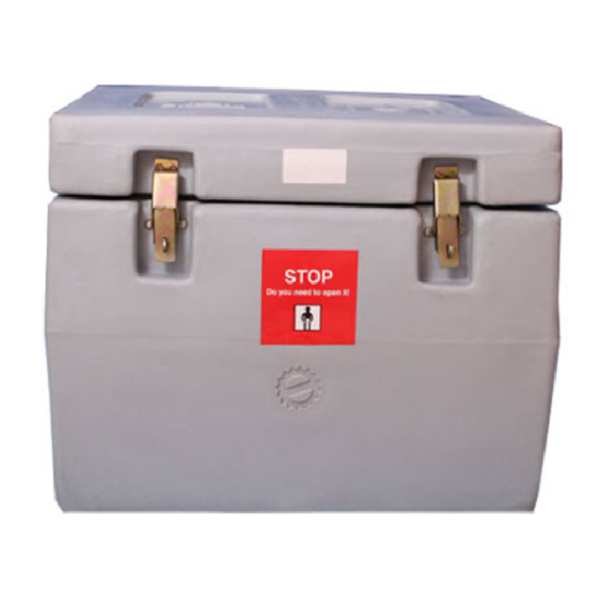

Cold Box 8 ltr external surface material is made of LLDPE
Cold Box 8 ltr internal lining material is made of LLDPE
Cold Box 8 ltr is also known as Small Cold Box, Short Range

WHO Reference PQS Number : E004/030

The Vaccine Storage Capacity is 8 Litres
The fully loaded Weight is 21.80 Kgs.
The Empty Weight with empty icepacks is 10.80 Kgs.
The Insulation Material is made of CFC free Polyurethane
The thickness of Insulation is 65 mm
The External Dimensions are (L x W x H) 54.4 X 44.5 X 42 cms
The Vaccine Storage Dimensions are 27 x 20.4 x 15.0 cms
The storage box and the Lid are Hinged & Removable
Total Number of Ice packs required are 24 x 0.30 Litre which are supplied with the unit
Ice-packs type : WHO PQS No. E005/007
The Cold Life Requirement as per WHO at 43 deg C ± 1 deg C without opening should be Minimum 84 Hours which satisfies this model.
