Description

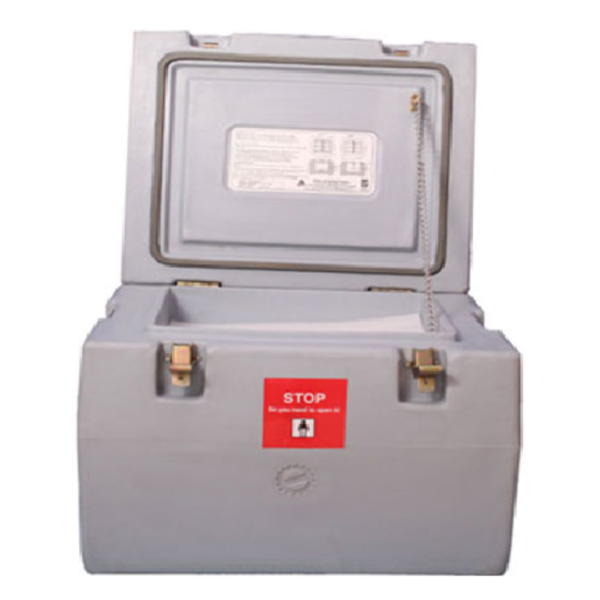

Cold Box 22.45 ltr external surface material is made of LLDPE
Cold Box 22.45 ltr internal lining material is made of LLDPE
Cold Box 22.45 ltr is also known as Large Cold Box, Long Range
WHO Reference PQS Number : E004/010
The Vaccine Storage Capacity is 22.45 Litres
The fully loaded Weight is 48.87 Kg.
The Empty Weight with empty icepacks is23.40 Kg.
The Insulation Material is made of CFC free Polyurethane
The thickness of Insulation is 100 mm
The External Dimensions are (L x W x H) 76.1X61.1X51.3 cm
The storage box and the Lid are Hinged & Removable
Total Number of Ice packs required are 44 x 0.4 Litre which are supplied with the unit
Ice-packs type : WHO PQS No : E005/008
The Cold Life Requirement as per WHO at 43 deg C ± 1 deg C without opening should be Minimum 140 Hours which satisfies this model.
