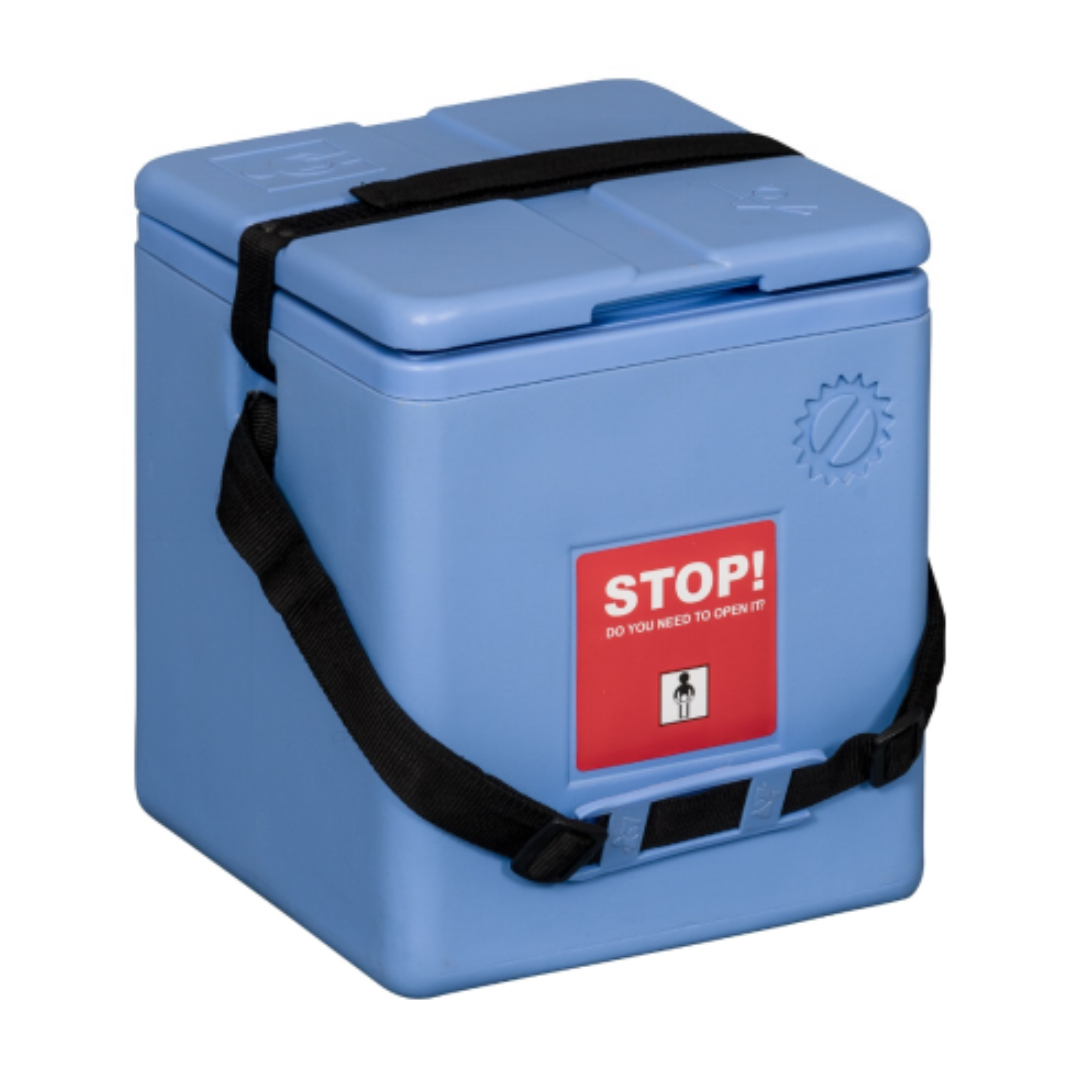

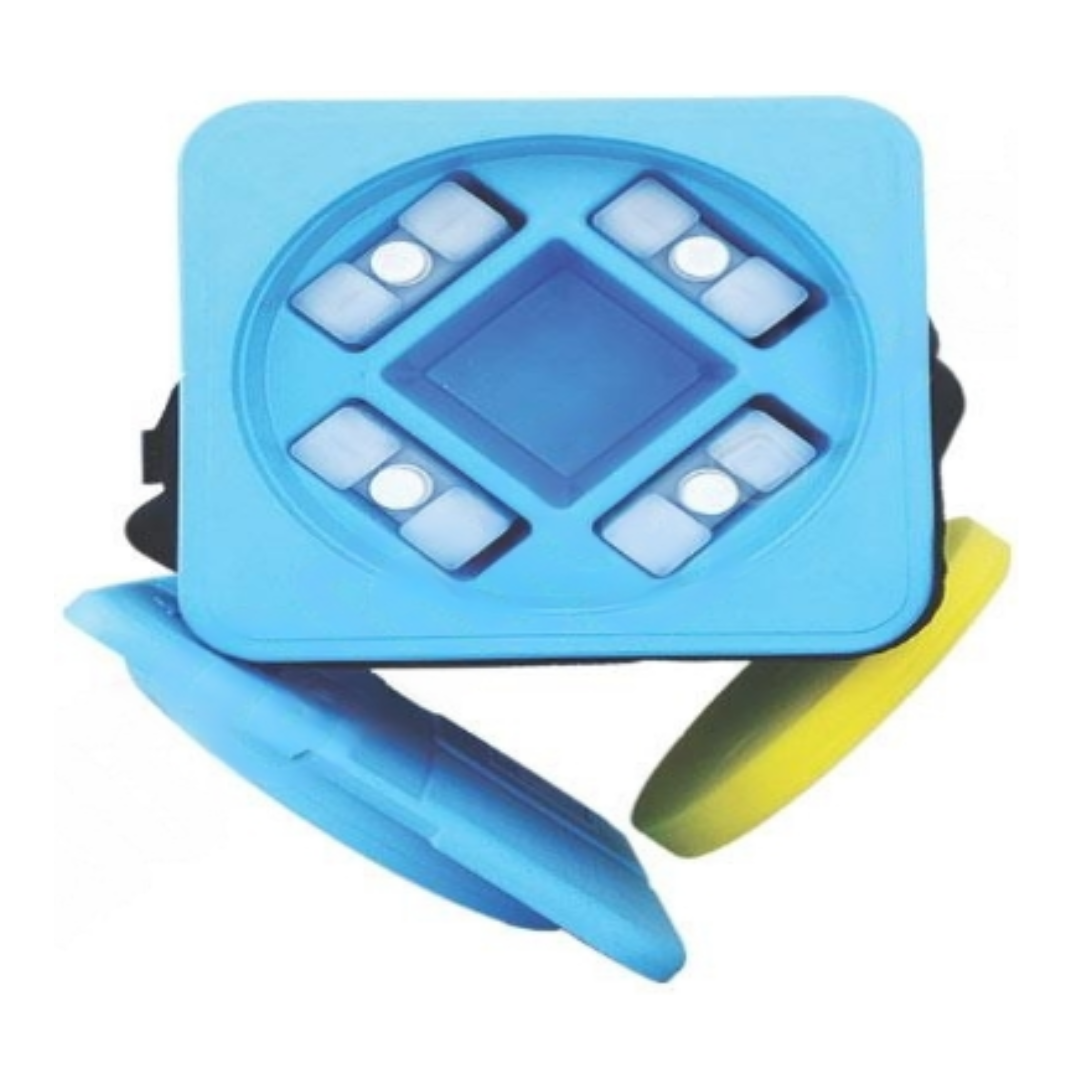

CC1028 – Freeze Free Vaccine Carrier, Long Range-1.71 Ltr
Add to Wishlist
Add to Wishlist
Description
| Specification | |
| Vaccine Storage Capacity as per Std. PQS load | 1.71 Ltr. |
| Gross Storage Capacity | 1.71 Ltr. |
| Weight Fully Loaded | 6.42 Kgs. |
| Weight Empty (with empty ice pack) | 3.58 Kgs. |
| External surface material | HDPE* |
| Internal lining material | HIPS* |
| Insulation material | CFC free Polyurethane |
| Insulation thickness | 35-40 mm |
| External dimensions (LxWxH) | 28.5×30.5×29.5 cms |
| Internal dimensions (LxWxH) | 10.3×10.3×16.2 cms |
| Vaccine Storage dimensions | 10.3×10.3×16.2 cms |
| Lid Type and Fixings | Removable, snap type |
| Number of Ice-packs Required | 4 |
| Number of Ice Packs supplied | 4 |
| Ice-pack type compliant with PQS E05/IP01.1 | IP4 |
| Volume of Ice Pack | 0.4 Litres |
| Min. Cold life Req. | 30 hrs. |
| Conforming to WHO PQS Ref. No. | WHO/PQS/E-004/VC02.1 |
| Cold life without openings at +43°C | 30 hrs. 24 minutes |
| Warm Life at -20°C | 16 hrs. 41 minutes |
| Cool Life +43°C | 64 minutes |
| *HDPE1 – High Density Polyethylene, * HIPS2 – High Impact Polystrene, *LLDPE3 – Linear Low Density Polyethylene | |
